26 Mar 2010 | JobID: TLSMD7766_HvlAdtJq | TLSMD Version 1.4.1 |
Analysis of TLS Group 9 Chain Segments (overall rmsd_b=2.15 and residual=0.18) | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Input Structure | TLS Predictions | ||||||||||
Color | Segment | Residues | Atoms | <B> | Brmsd | <Aniso> | RMSD B | Tr B | eval(L) DEG2 | <B> | <Aniso> |
9-37 | 29 | 244 | 21.1 | 5.87 | 1.00 | 2.37 | 11.6 | 8.80, 0.00, 4.24 | 21.1 | 0.73 | |
38-61 | 24 | 189 | 18.1 | 4.66 | 1.00 | 1.96 | 12.1 | 7.91, 0.00, 3.77 | 18.1 | 0.74 | |
62-101 | 40 | 319 | 16.8 | 5.42 | 1.00 | 2.29 | 10.5 | 10.63, 0.00, 2.03 | 16.8 | 0.72 | |
102-119 | 18 | 130 | 20.3 | 6.74 | 1.00 | 2.23 | 13.4 | 32.34, 0.00, 4.09 | 20.3 | 0.70 | |
120-147 | 28 | 209 | 18.2 | 3.72 | 1.00 | 2.39 | 13.0 | 4.20, 0.95, 0.00 | 18.2 | 0.82 | |
148-161 | 14 | 105 | 17.9 | 4.78 | 1.00 | 2.05 | 12.1 | 13.78, 0.00, 3.75 | 17.9 | 0.76 | |
162-169 | 8 | 73 | 22.9 | 6.76 | 1.00 | 2.57 | 13.8 | 32.56, 0.00, 4.49 | 22.9 | 0.72 | |
170-218 | 49 | 349 | 18.4 | 4.24 | 1.00 | 2.30 | 13.7 | 6.57, 0.83, 0.00 | 18.4 | 0.80 | |
219-247 | 29 | 213 | 25.2 | 6.84 | 1.00 | 2.42 | 17.6 | 13.93, 0.64, 0.00 | 25.2 | 0.75 |
Mean BFactor Analysis |
---|
RMSD B Values of Combined TLS Groups | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Translation Analysis of Tr |
---|

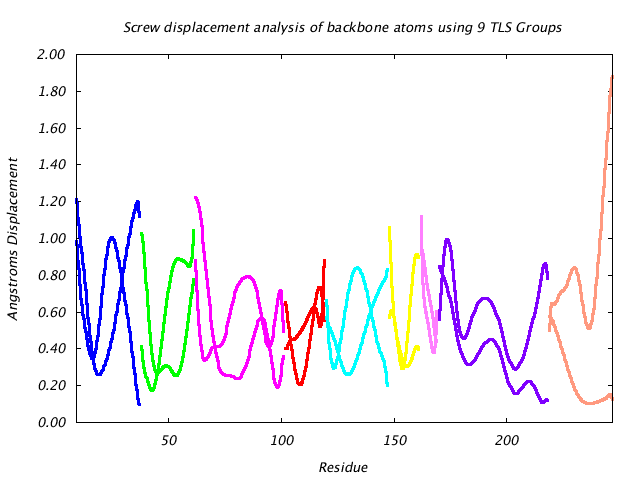

Screw Displacement Analysis |
---|
Deviation of Observed CA Atom B-Factors From TLS Model |
---|
RMSD Deviation of Observed vs. TLS Predicted B Factors |
---|
Distribution Histogram of TLS Group 9-37 |
---|
Distribution Histogram of TLS Group 38-61 |
---|
Distribution Histogram of TLS Group 62-101 |
---|
Distribution Histogram of TLS Group 102-119 |
---|
Distribution Histogram of TLS Group 120-147 |
---|
Distribution Histogram of TLS Group 148-161 |
---|
Distribution Histogram of TLS Group 162-169 |
---|
Distribution Histogram of TLS Group 170-218 |
---|
Distribution Histogram of TLS Group 219-247 |
---|
