1CTS: Chain A Partitioned by 10 TLS Groups


Back to Index    Back to Chain A Analysis

Analysis of TLS Group 10 Chain Segments (overall rmsd_b=5.42 and residual=2.03)
Input StructureTLS Predictions
ColorSegmentResiduesAtoms<B>Brmsd<Aniso>RMSD BTr Beval(L) DEG2<B><Aniso>
blue4-110107802 26.8 6.811.00 5.58 18.9 0.00, 1.67, 1.01 26.80.83
green111-17161479 22.8 7.651.00 6.06 15.7 4.58, 0.00, 1.72 22.80.79
magenta172-21140309 21.6 6.321.00 5.09 20.0 0.00, 2.76, 0.00 21.60.78
red212-23726216 24.0 7.471.00 5.76 13.113.18, 2.06, 0.00 24.00.78
cyan238-27942293 18.7 5.521.00 4.86 16.5 2.94, 0.00, 0.68 18.70.87
yellow280-29314114 25.0 8.301.00 5.78 19.919.69, 0.00, 2.42 25.00.73
violet294-31522167 29.5 6.121.00 4.39 26.215.65, 0.00, 0.00 29.50.84
purpleblue316-35944358 24.1 6.891.00 5.47 20.1 5.39, 0.00, 0.00 24.10.81
salmon360-37314102 32.1 7.751.00 4.83 25.1 0.00, 21.17, 0.00 32.10.81
lime374-43461472 22.7 6.681.00 6.00 20.6 1.16, 0.00, 0.00 22.70.86


Mean BFactor Analysis
1CTS_CHAINA_NTLS10_BMEAN

Comparison of TLS predicted B factors with experimental (input) B factors.



RMSD B Values of Combined TLS Groups
4-110111-171172-211212-237238-279280-293294-315316-359360-373374-434
4-110 5.57 5.94 5.54 5.93 5.47 5.89 5.64 5.84 5.90 5.86
111-171 5.94 6.06 5.94 6.27 5.76 6.29 5.98 6.16 6.39 6.38
172-211 5.54 5.94 4.70 5.75 5.09 5.87 5.38 5.41 5.72 6.00
212-237 5.93 6.27 5.75 5.75 5.95 6.35 5.98 5.96 6.30 6.48
238-279 5.47 5.76 5.09 5.95 4.76 5.69 5.16 5.52 5.68 5.78
280-293 5.89 6.29 5.87 6.35 5.69 5.71 5.66 5.92 5.86 6.24
294-315 5.64 5.98 5.38 5.98 5.16 5.66 4.20 5.71 5.26 5.83
316-359 5.84 6.16 5.41 5.96 5.52 5.92 5.71 5.29 6.19 6.01
360-373 5.90 6.39 5.72 6.30 5.68 5.86 5.26 6.19 4.21 6.25
374-434 5.86 6.38 6.00 6.48 5.78 6.24 5.83 6.01 6.25 5.82

The TLSMD optimization algorithm models TLS groups as sequential segments of a protein or DNA/RNA chain. This matrix shows the RMSD B values of the individual groups on the diagonal, and the RMSD B values of combined groups as off-diagonal elements. This helps identify non-contiguous protein segments which may be combined into a single TLS group.



Translation Analysis of Tr
1CTS_CHAINA_NTLS10_TRANSLATION

This graph shows the TLS group translational displacement magnitude of the three principal components of the reduced T tensor at a isoprobability magnitude of 85%. The line colors are the same as those used for the TLS groups in the various structure visualizations.

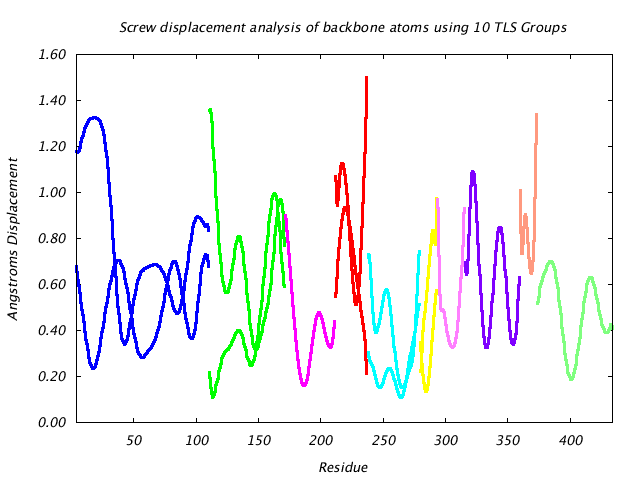

Screw Displacement Analysis
1CTS_CHAINA_NTLS10_LIBRATION

This graph shows the displacement of main chain atoms implied by the three screw axes of the TLS group to which they belong. The screw displacement axes are calculated in terms of a Gaussian variance-covariance tensor, and displacement magnitude is shown at a 85% isoprobability magnitude like the translational displacement. Protein segments undergoing hinge-like motion show up as peaks in this graph.

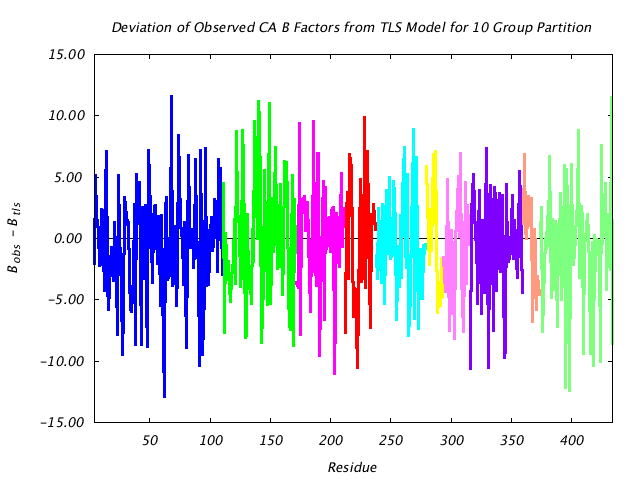

Deviation of Observed CA Atom B-Factors From TLS Model
1CTS_CHAINA_NTLS10_CADIFF

This graph assesses the quality of the TLS prediction for each residue by graphing the difference between the refined (input) main chain atom B factors and the corresponding B factors implied by the TLS model alone. If the TLS model were a perfect description of the observed thermal motion described by the input structural model, this plot would consist of a line at 0.



RMSD Deviation of Observed vs. TLS Predicted B Factors
1CTS_CHAINA_NTLS10_RMSD

This plot is similar to the plot above, except that instead of plotting (Bpred - Bobs) for the CA atom only, the colored line plots the RMSD of |Bpred-Bobs| for all atoms in the residue. If the TLSMD model were a perfect description of the input B values, then the colored line would be a horizontal line at 0.


Distribution Histogram of TLS Group 4-110
1CTS_CHAINA_TLSA4_110_BoBc

Distribution Histogram of TLS Group 111-171
1CTS_CHAINA_TLSA111_171_BoBc

Distribution Histogram of TLS Group 172-211
1CTS_CHAINA_TLSA172_211_BoBc

Distribution Histogram of TLS Group 212-237
1CTS_CHAINA_TLSA212_237_BoBc

Distribution Histogram of TLS Group 238-279
1CTS_CHAINA_TLSA238_279_BoBc

Distribution Histogram of TLS Group 280-293
1CTS_CHAINA_TLSA280_293_BoBc

Distribution Histogram of TLS Group 294-315
1CTS_CHAINA_TLSA294_315_BoBc

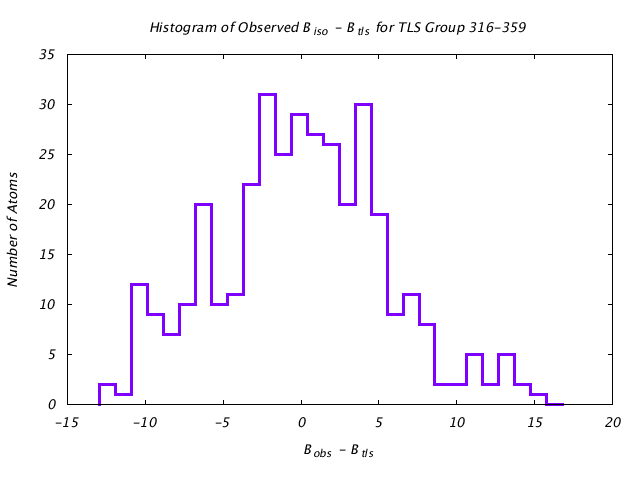

Distribution Histogram of TLS Group 316-359
1CTS_CHAINA_TLSA316_359_BoBc

Distribution Histogram of TLS Group 360-373
1CTS_CHAINA_TLSA360_373_BoBc

Distribution Histogram of TLS Group 374-434
1CTS_CHAINA_TLSA374_434_BoBc
